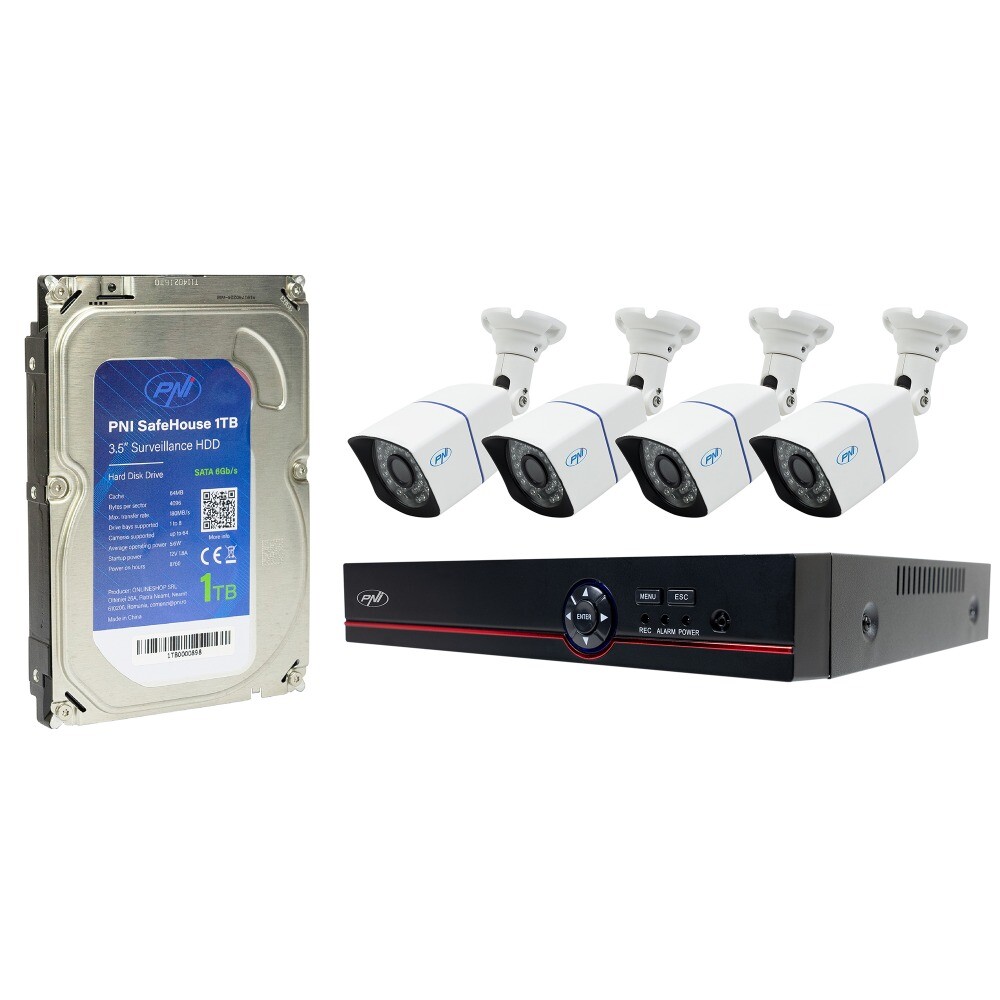

AHD Surveillance Kit PNI House PTZ1500 with 4 Outdoor Cameras 5MP and PNI SafeHouse 1TB HDD Included
Complete AHD surveillance system with 4 outdoor 5MP cameras and a 1TB hard drive. Easy to install, 24/7 monitoring, high-definition recording.
Shipping price: 21 Lei
SKU: PNI-PT1500-1TB
GTIN: 5949066540851
Stock Status:
In Stock
Delivery Status: 1-3 days
Warranty: 24 months, Payment by bank transfer
Description
1 5MP AHD Surveillance System

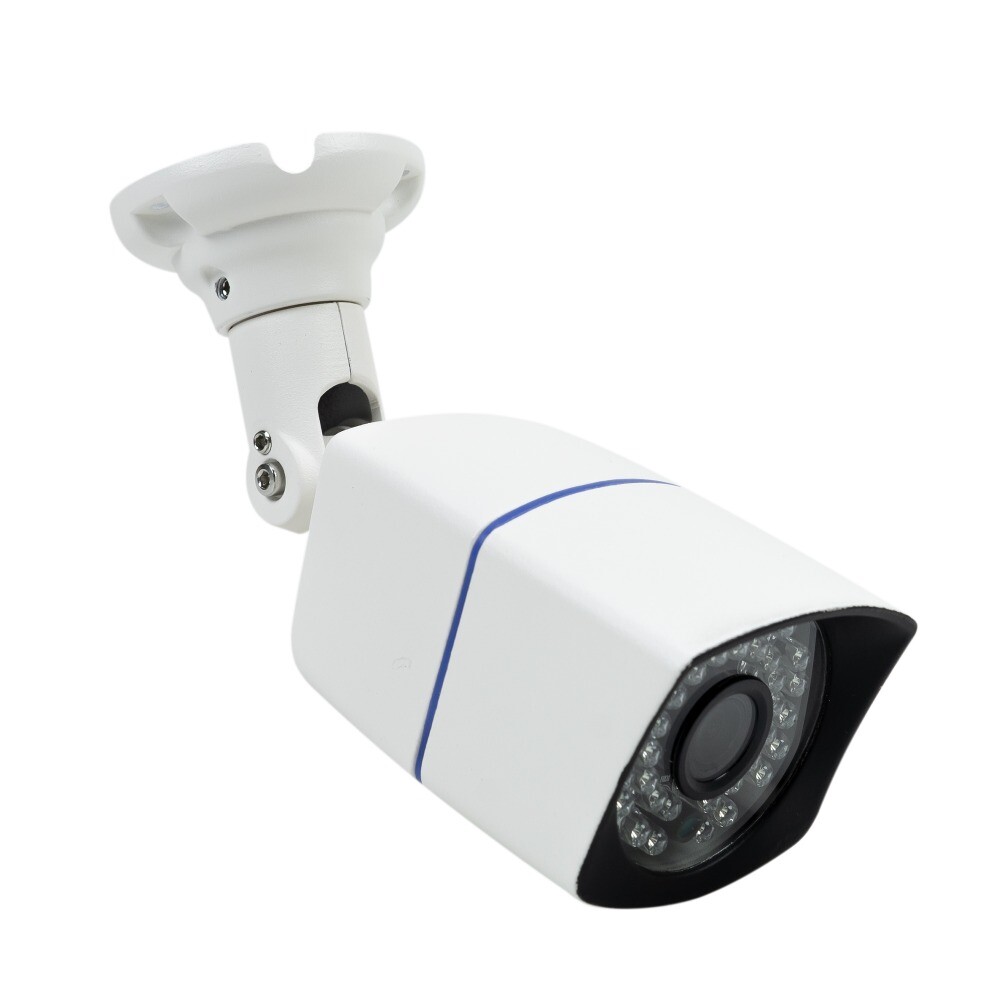

The PNI House PTZ1500 AHD surveillance kit includes 4 cameras for outdoor or indoor installation with a resolution of 5MP (2500 x 1920px). The cameras have 36 IR LEDs that ensure nighttime visibility at a distance of up to 40 meters. The metal casing and IP66 water protection class ensure the camera's resistance to external conditions (humidity and dust). The cameras connect to the DVR via the included video and power cable. The 5MP resolution guarantees exceptional image clarity, contrast and detail. You can easily recognize people's faces, license plates or other telling details in the protected space.
2 Software
The PNI House PTZ1500 system can be controlled locally or remotely from both
smartphones and computers with Windows operating systems. Download the XMEye application for Android and iOS or General CMS for Windows. The installation file can be downloaded from the CD included in the package or from the Download section on the product website.
3 Simultaneous real-time surveillance via HDMI and VGA video outputs
Connect a monitor to the HDMI (maximum 4K) or VGA (maximum 1080P) output of the DVR and you can watch in real time everything that happens in the protected space. Also, through the monitor, access the DVR menu and make the necessary system settings, update the firmware or manage users.
4 Audio and video recording, H.265+ video compression
PNI House PTZ1500 supports a maximum Hard Disk of maximum 8TB. We recommend installing a dedicated Hard Disk for surveillance systems that ensures safe operation 24/7. H.265+ video compression, the latest and most efficient compression technology, maximizes storage space without affecting video quality. Plug a microphone into the dedicated audio input and the system will record audio and video in exceptional quality.
5 Hybrid DVR / NVR System
You can connect to this surveillance system not only the 4 AHD cameras included in the package. The system also supports network connection of IP cameras. PNI House PTZ1500 supports:
• 4 5MP analog cameras
• 4 4MP analog cameras
• 4 1080P analog cameras
• 4 4MP analog cameras + 4 4MP IP cameras
• 16 1080P IP cameras
• 8 5MP IP cameras
6 Motion detection, face detection and human detection
PNI House PTZ1500 offers all the necessary tools for safe and intelligent surveillance of your space. Activate the motion detection, face detection and human detection functions and you will receive alerts via email, FTP or in the mobile application whenever the system detects motion or detects human presence. The face detection function helps you filter recordings that contain a specific human face on a specific channel and in a specific period.
The PNI House PTZ1500 AHD surveillance kit includes 4 cameras for outdoor or indoor installation with a resolution of 5MP (2500 x 1920px). The cameras have 36 IR LEDs that ensure nighttime visibility at a distance of up to 40 meters. The metal casing and IP66 water protection class ensure the camera's resistance to external conditions (humidity and dust). The cameras connect to the DVR via the included video and power cable. The 5MP resolution guarantees exceptional image clarity, contrast and detail. You can easily recognize people's faces, license plates or other telling details in the protected space.
2 Software
The PNI House PTZ1500 system can be controlled locally or remotely from both
smartphones and computers with Windows operating systems. Download the XMEye application for Android and iOS or General CMS for Windows. The installation file can be downloaded from the CD included in the package or from the Download section on the product website.
3 Simultaneous real-time surveillance via HDMI and VGA video outputs
Connect a monitor to the HDMI (maximum 4K) or VGA (maximum 1080P) output of the DVR and you can watch in real time everything that happens in the protected space. Also, through the monitor, access the DVR menu and make the necessary system settings, update the firmware or manage users.
4 Audio and video recording, H.265+ video compression
PNI House PTZ1500 supports a maximum Hard Disk of maximum 8TB. We recommend installing a dedicated Hard Disk for surveillance systems that ensures safe operation 24/7. H.265+ video compression, the latest and most efficient compression technology, maximizes storage space without affecting video quality. Plug a microphone into the dedicated audio input and the system will record audio and video in exceptional quality.
5 Hybrid DVR / NVR System
You can connect to this surveillance system not only the 4 AHD cameras included in the package. The system also supports network connection of IP cameras. PNI House PTZ1500 supports:
• 4 5MP analog cameras
• 4 4MP analog cameras
• 4 1080P analog cameras
• 4 4MP analog cameras + 4 4MP IP cameras
• 16 1080P IP cameras
• 8 5MP IP cameras
6 Motion detection, face detection and human detection
PNI House PTZ1500 offers all the necessary tools for safe and intelligent surveillance of your space. Activate the motion detection, face detection and human detection functions and you will receive alerts via email, FTP or in the mobile application whenever the system detects motion or detects human presence. The face detection function helps you filter recordings that contain a specific human face on a specific channel and in a specific period.
Technical Data
| Product identification | |
|---|---|
| Manufacturer | PNI |
| Product code | PNI-PTZ1500 |
| DVR/NVR color | Black |
| Camera color | White/Black |

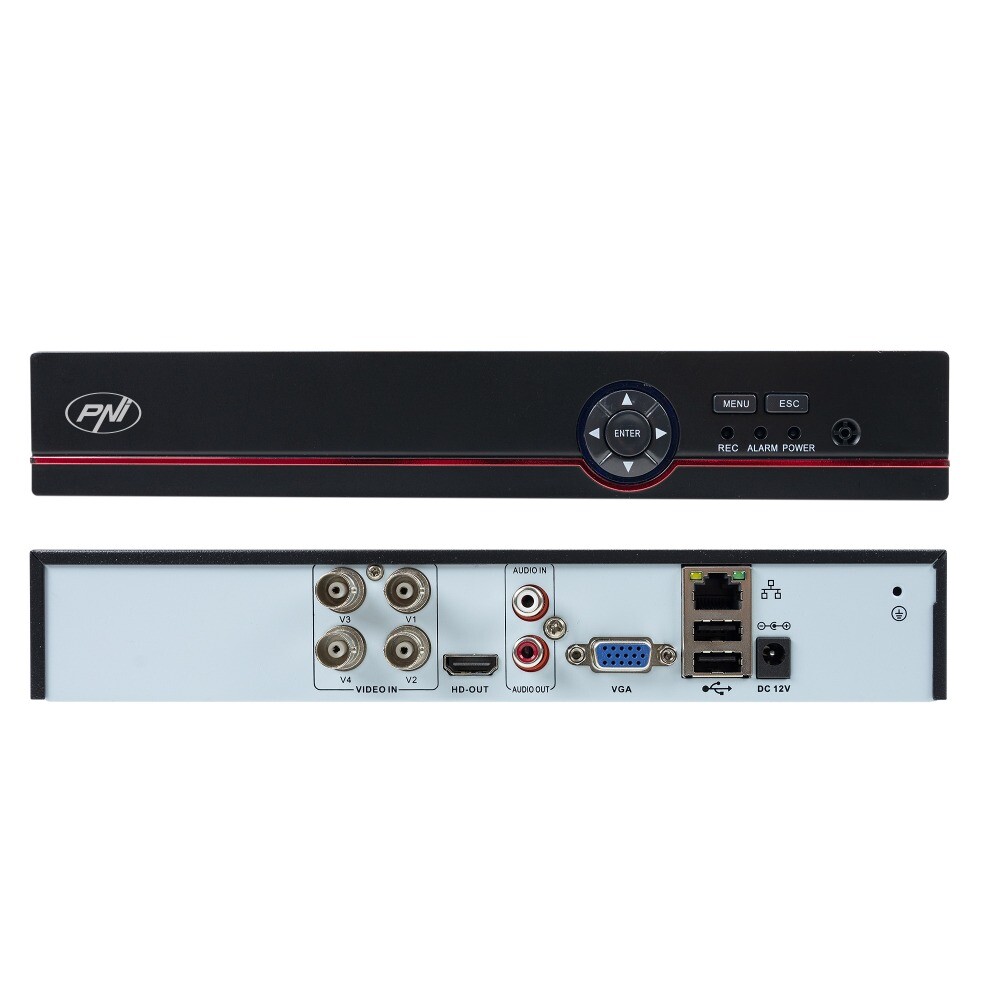

| DVR/NVR features | |
| Video inputs | 4 x BNC |
| Video outputs | 1 x VGA, 1 x HDMI |
| Playback resolution | 4K (HDMI) / 1080P (VGA) |
| Audio inputs | 1 x RCA |
| Audio outputs | 1 x RCA |
| Recording type | Simultaneous audio and video recording |
| Audio compression | G711A |
| Video compression | H.265+ |
| Data storage | maximum 1 x 8 TB HDD 3.5 |
| Network interface | RJ45 10/100 Mbps |
| Firmware update | Yes, via USB |
| Power supply | 12V/2A |
| Operating temperature | -26°C ~ +80°C |
| Dimensions | 255 x 218 x 43 mm |
| Number of channels | 4 analog |
| Recording resolution and number of channels, variants • 4 analog cameras 5MP • 4 analog cameras 4MP • 4 analog cameras 1080P • 4 analog cameras 4MP + 4 IP cameras 4MP • 16 IP cameras 1080Px • 8 IP cameras 5MP | |
| USB ports | 2 x USB2.0 |
| Dedicated application | XMEye |
| Network | Yes, RJ45 LAN Port |
| Motion detection | Yes |
| Chip detection | Yes |
| Camera features | |
| Image sensor | CMOS Color |
| Video system | PAL/NTSC |
| Pixels | 2560 × 1920px |
| Video output | Analog, 75Ω, BNC connector |
| Protection degree | IP66, metal housing |
| IR illumination distance | Up to 30 m |
| Dimensions | 65 x 180 x 60 mm |
| Number of IR LEDs | 36 |
| Power supply | 12V / 1A |
| Lens | 3.6 mm |
| Operating temperature | -26°C ~ +80°C |
| Dedicated application | XMEye |
| Sensor resolution | 5MP |

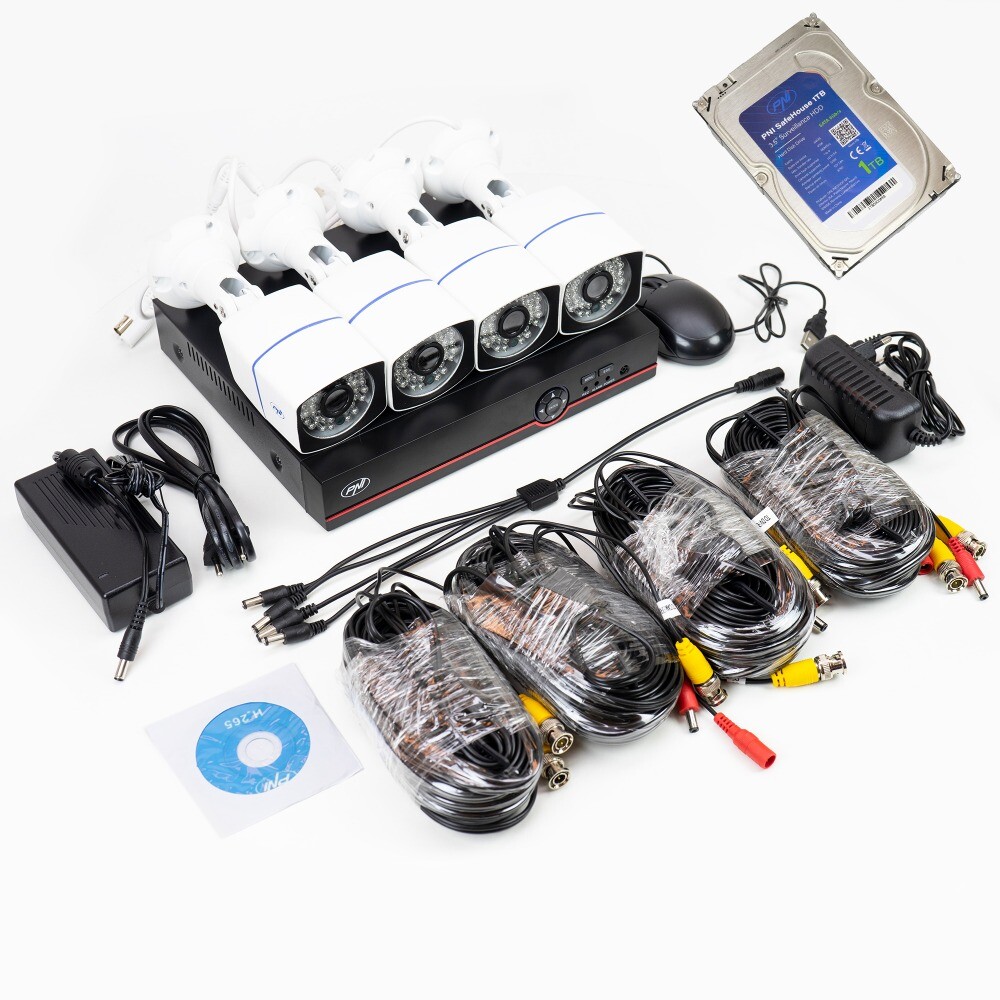

| Package contains | |
| DVR / NVR | Yes |
| Surveillance cameras | 4 indoor/outdoor cameras |
| Camera connection cables | 4 x 18.3 m |
| Power splitter | Yes, 1 x 4 |
| NVR / DVR power supply | 230V -> 12V 2A |
| Software CD | Yes |
| User manual | Yes |
| USB mouse | Yes |
| Camera power supply | 230V -> 12V 3A |
