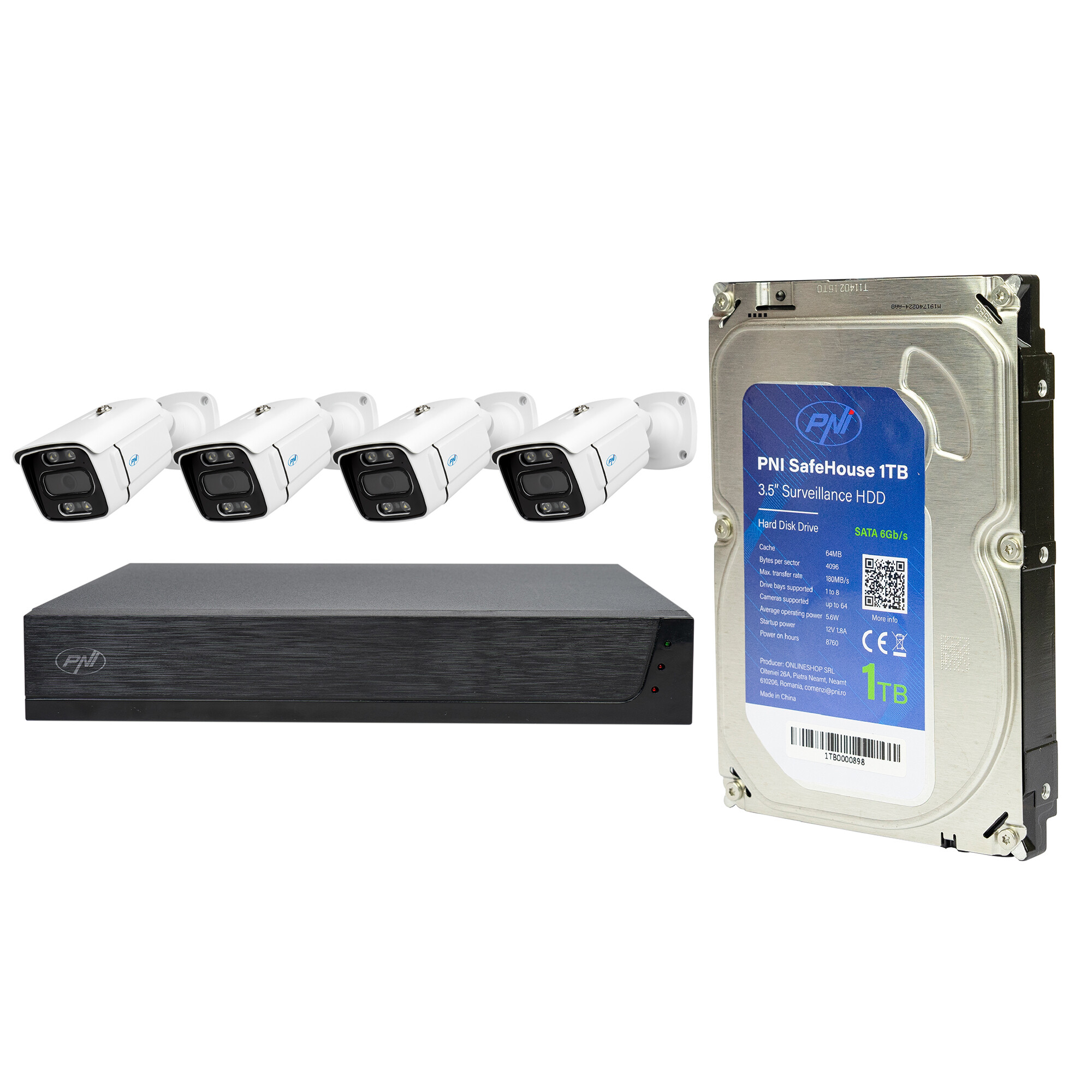

PNI House IPMAX POE 3 Video Surveillance Kit with 4 3MP IP Cameras, POE NVR and 1TB HDD
Complete system with POE NVR, 4 outdoor 3MP IP cameras and 1TB HDD. Easy installation, clear image and remote access.
Description
PNI House IPMAX POE 3 Video Surveillance Kit – Total Performance and Control
Ensure complete protection for your home or business with the PNI House IPMAX POE 3 surveillance system, equipped with 4 3MP IP cameras and an NVR with 4 POE ports. Each camera captures image and sound, offering superior clarity day and night, and configuration is simple, via a single network cable.
Local and remote control
Control and access the system quickly, either locally or remotely, directly from your phone or tablet. With the free XMEye application (Android/iOS), you can watch in real time or play recordings from anywhere. For PC, the General CMS software is available (included on CD or downloadable from the website).

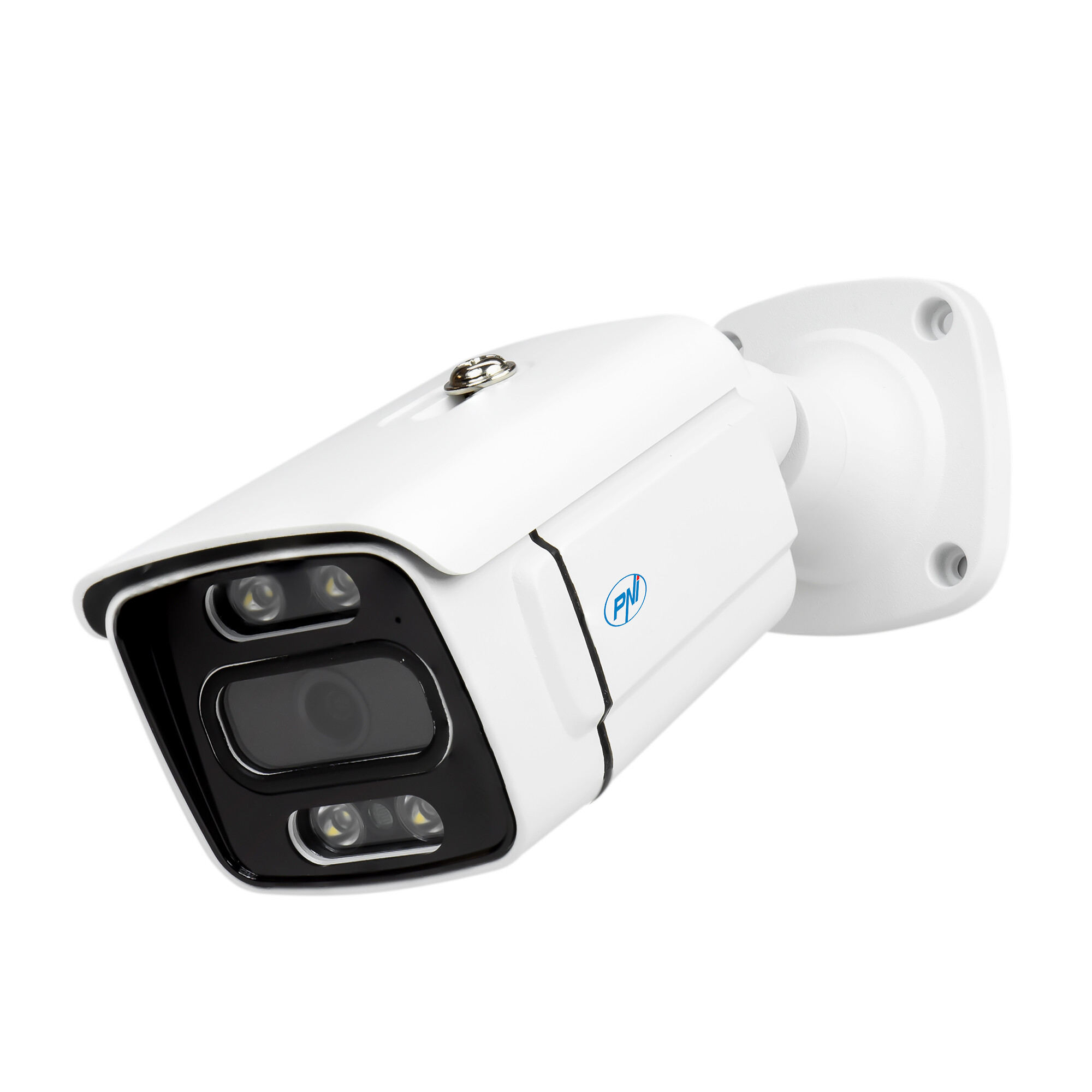

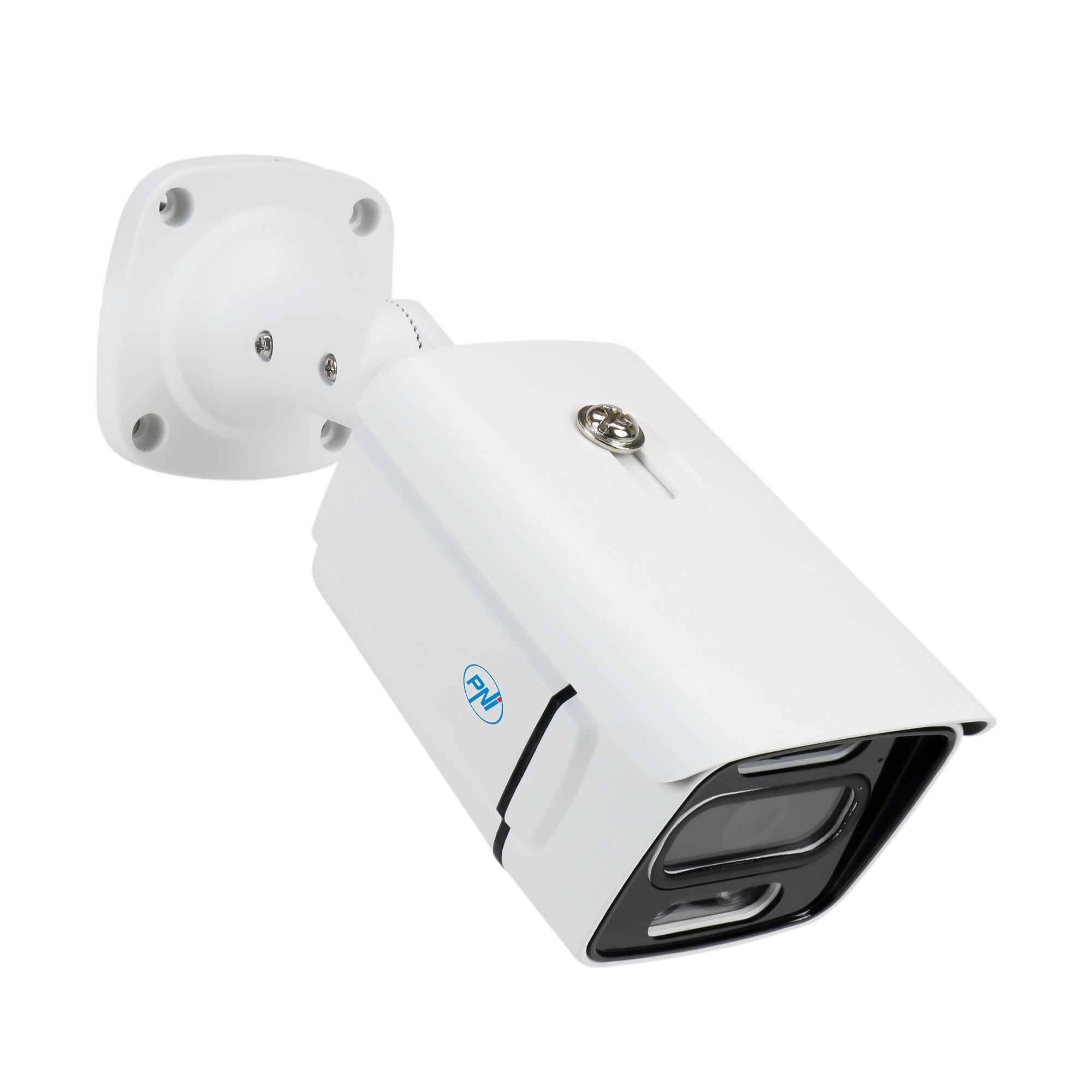

3MP IP cameras with IR and white light
The 4 included IP cameras are equipped with an integrated microphone and offer 3 megapixel resolution (2304 x 1296px). Night vision is ensured by 4 IR LEDs and white light (Flashlight), with an effective field of view of up to 15 meters.
Intelligent H.265AI Compression
The system uses advanced H.265 AI / H.265+ compression technology, which significantly reduces file size without losing video quality. You can connect an HDD of up to 8TB (not included in the package).
Support for 9 IP cameras up to 8MP
The NVR supports up to 4 cameras connected directly via POE ports or up to 9 IP cameras via a POE switch. Compatible with cameras up to 8MP (4K resolution), providing extensive configuration flexibility.
Full connectivity and fast backup

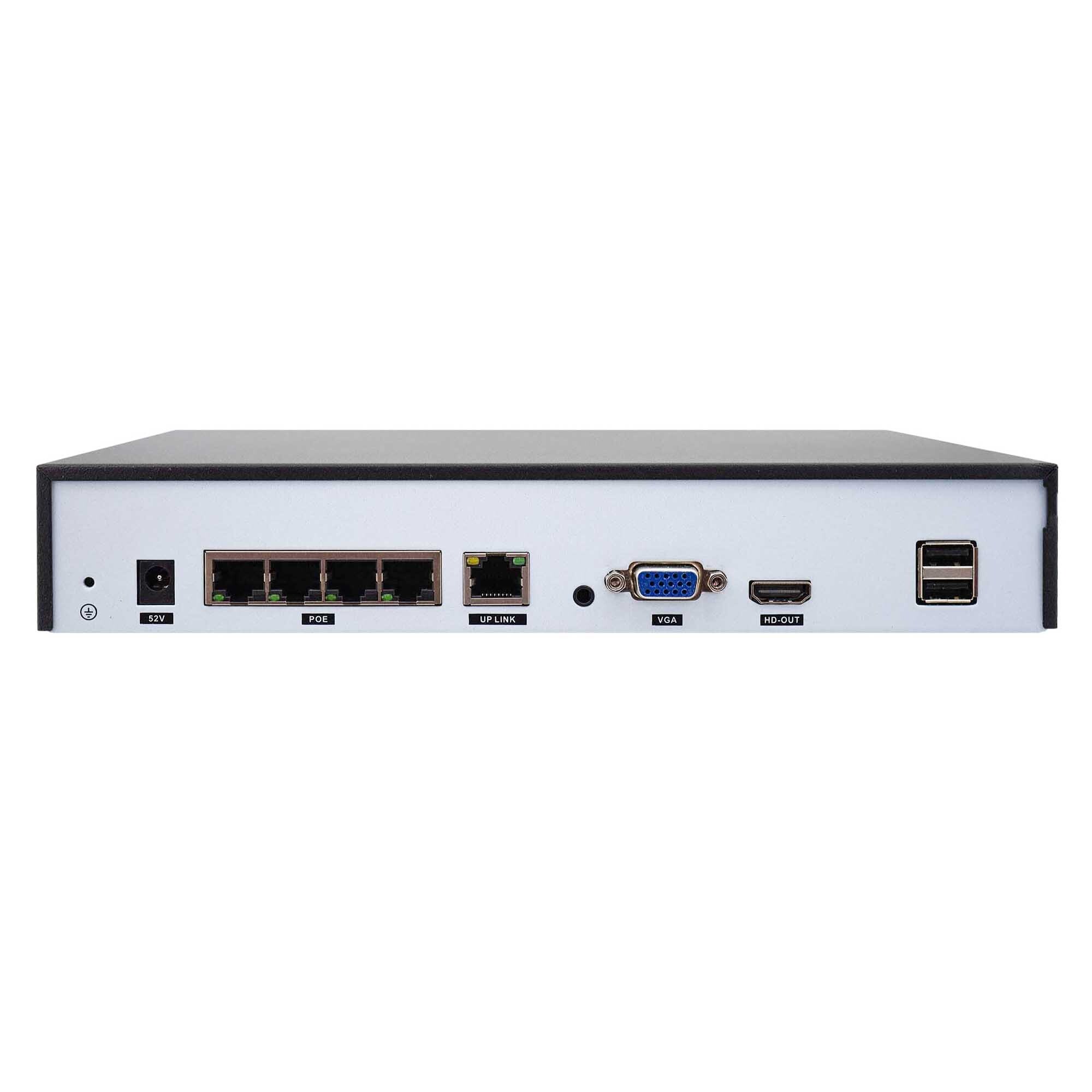

The device is equipped with HDMI and VGA outputs, for connection to any monitor. Recordings can be saved locally on a USB stick or downloaded remotely via the internet. The network connection is made via the RJ45 LAN port.
Single cable power supply (POE)
Each camera connects via a single Ethernet cable (included), which transmits both the video signal and the power. You no longer need external sources or additional cables. You can use cables up to 100 meters long (the kit includes 4 cables of 18.3 meters).
Quick installation and Plug & Play
The system is easy to configure – simply connect the cameras and the NVR, and the system is ready to operate. Access is made via the mobile application, PC software or directly via the browser (Internet Explorer).
Intelligent human face detection
The system can automatically identify and save human faces and shapes (function available depending on the cameras used). Thus, you can quickly filter video events based on these criteria.

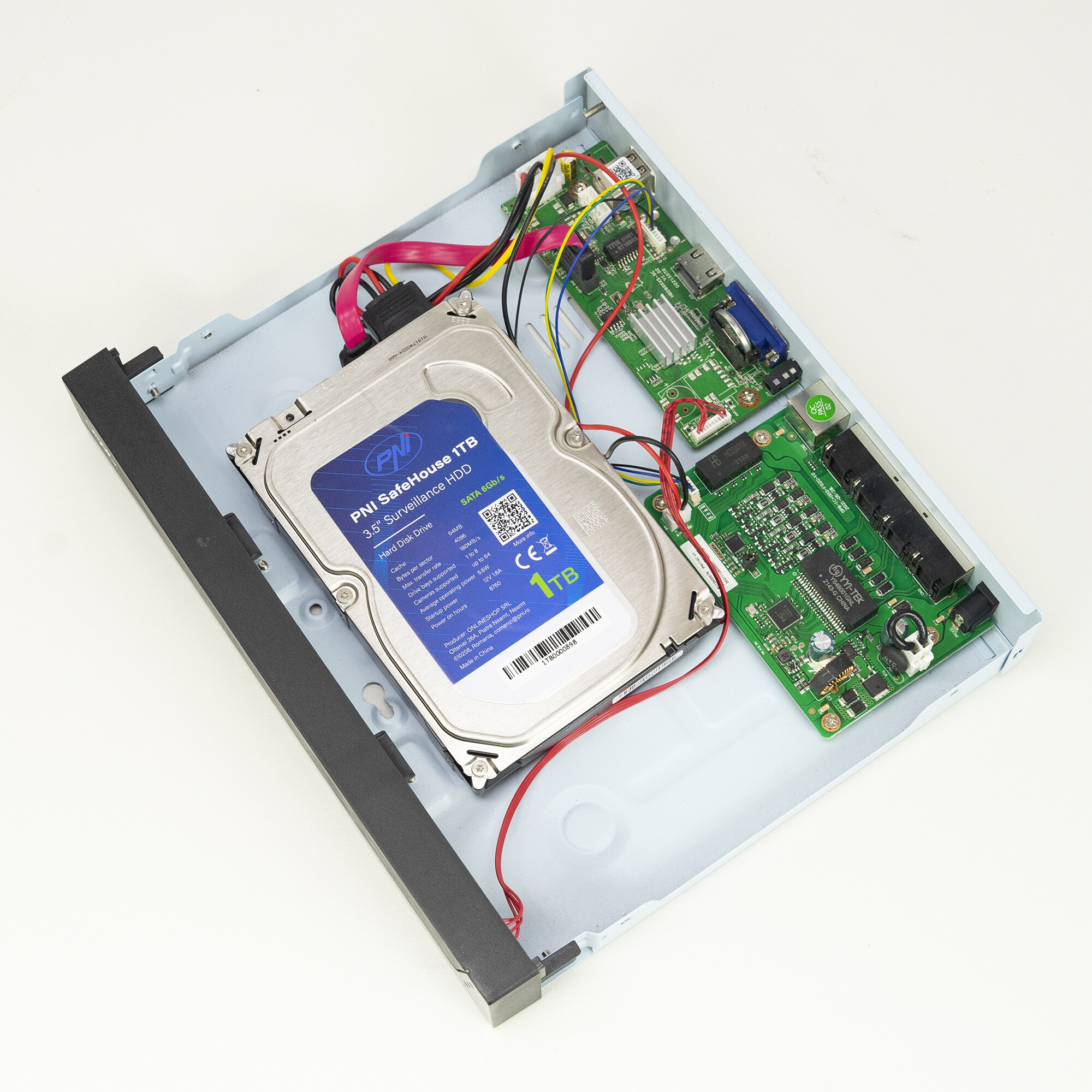

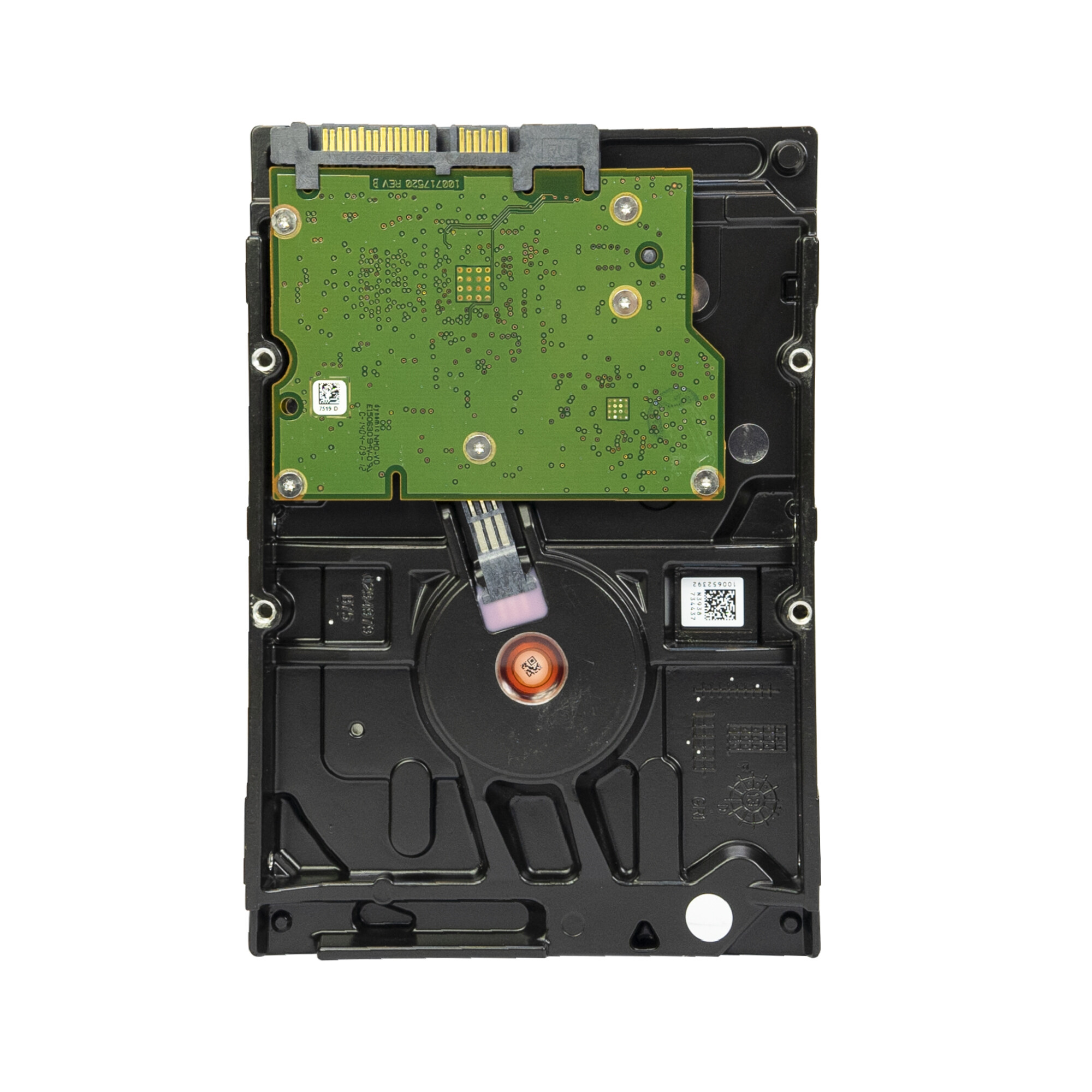

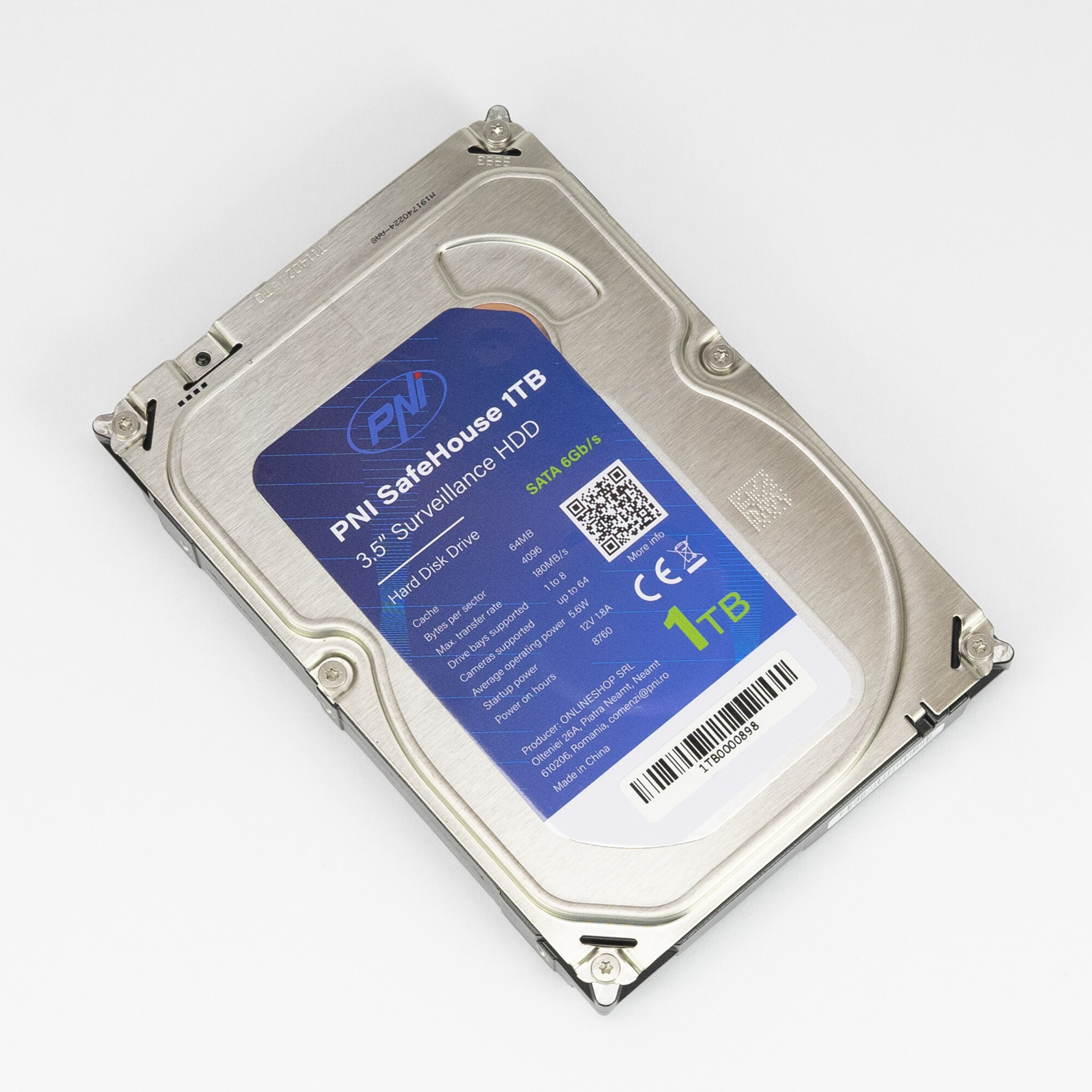

Supports HDD up to 8TB
We recommend using a dedicated HDD for surveillance systems, designed for continuous operation 24/7. The NVR supports a hard drive up to 8TB (not included).

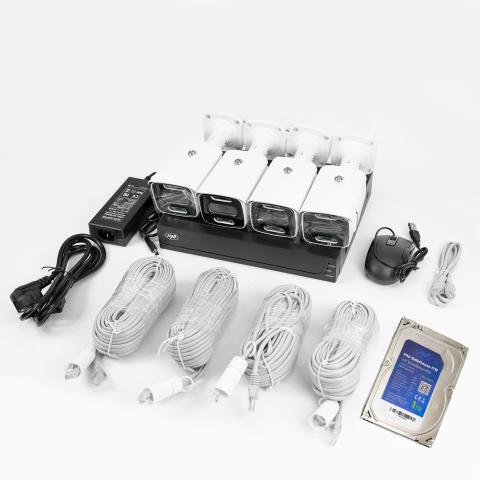

The package contains:

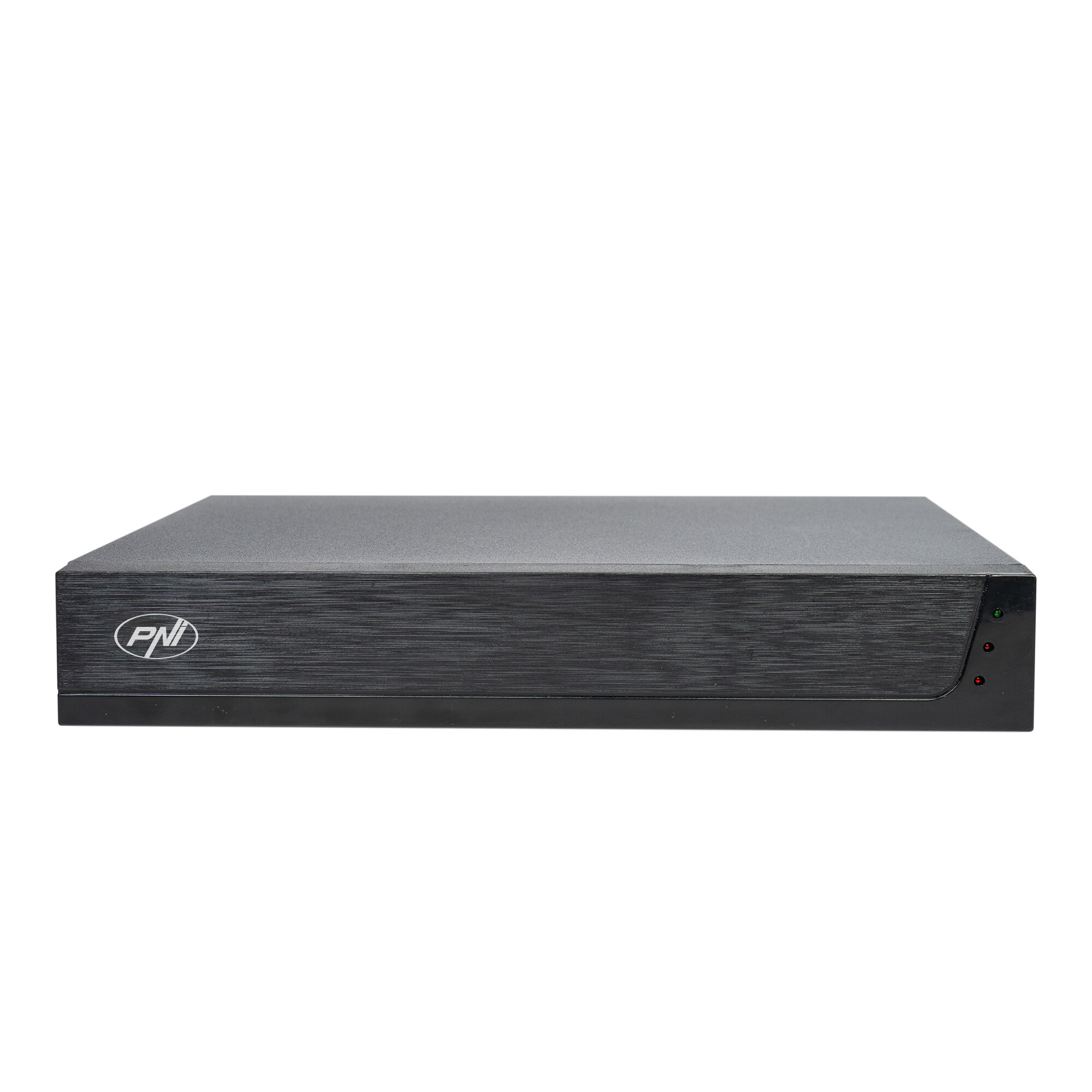

1x 4-channel POE NVR
4x 3MP IP cameras with microphone
4x 18.3m Ethernet cables
1x mouse
1x CD with CMS software
Mounting accessories
Ideal for home, office, shop or any other location that requires secure and modern video surveillance.
Technical Data
| Product identification | |
|---|---|
| Manufacturer | PNI |
| Product code | PNI-IPMAX3 |
| DVR/NVR color | Black |
| Camera color | White/Black |
| DVR/NVR features | |
| Video inputs | 4 x POE max. 4K |
| Video outputs | 1 x VGA, 1 x HDMI |
| Playback resolution | 2K (HDMI) / 1080P (VGA) |
| Recording resolution | 9 x max. 4K |
| Audio outputs | 1 x 3.5 mm |
| Recording type | Simultaneous audio and video recording |
| Audio compression | G711A |
| Video compression | H.265AI / H.265+ |
| Data storage | maximum 1 x 8 TB HDD 3.5 |
| Network interface | RJ45 10/100 Mbps |
| Firmware update | Yes, via USB |
| Power supply | 48V/ 2A |
| Consumption | 10 W (without HDD) |
| Operating temperature | -26°C ~ +80°C |
| Dimensions | 255 x 220 x 43 mm |
| Number of channels | 9 digital |
| Recording resolution and number of channels, variants | 9 x max. 4K |
| PTZ Control | Support |
| USB Ports | 2 x USB2.0 |
| Dedicated Application | XMEye |
| Network | Yes, RJ45 LAN Port |
| Recording Modes | Manual, Motion Detection, Scheduled |
| Motion Detection | Yes |
| Chip Detection | Yes |
| Human Shape Detection | Yes |
| Camera Features | |
| Video System | PAL/NTSC |
| Pixels | 2304 x 1296 |
| Video Output | Digital, via RJ45 |
| Audio Input | Built-in Microphone |
| Minimum Illumination | 0.01Lux/F2.0(Color), 0Lux/F2.0(IR on) |
| Protection Grade | IP66, Metal Housing |
| IR Illumination Distance | Up to 15 m |
| Dimensions | 70 x 190 x 65 mm |
| Number of IR LEDs | 4 IR LEDs and Floodlight |
| Power Supply | POE |
| Lens | 3.6 mm |
| Network Interface | RJ45 10/100Mps |
| Operating temperature | -26°C ~ +80°C |
| Dedicated application | XMEye |
| Sensor resolution | 3MP |
| Package includes | |
| DVR / NVR | Yes |
| Surveillance cameras | 4 indoor/outdoor cameras |
| Camera connection cables | 4 x 18.3 m |
| NVR / DVR power supply | 230V -> 48V |
| Software CD | Yes |
| User manual | Yes |
| USB mouse | Yes |
